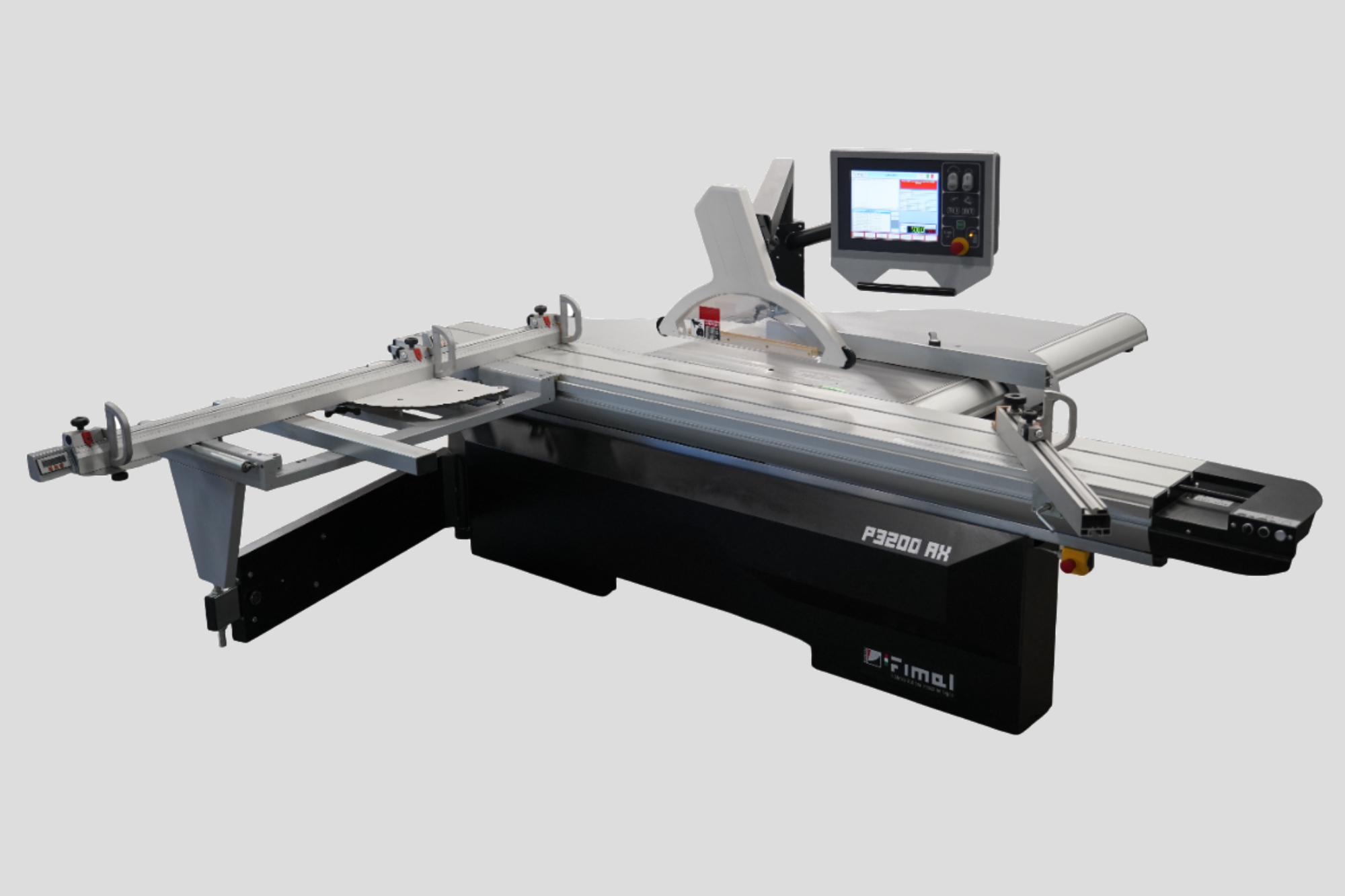

MODELS: P3200NX – P3200SX – P3200AX
P3200
P3200AX
P3200NX
P3200SX
EXTENSION TABLE FENCE

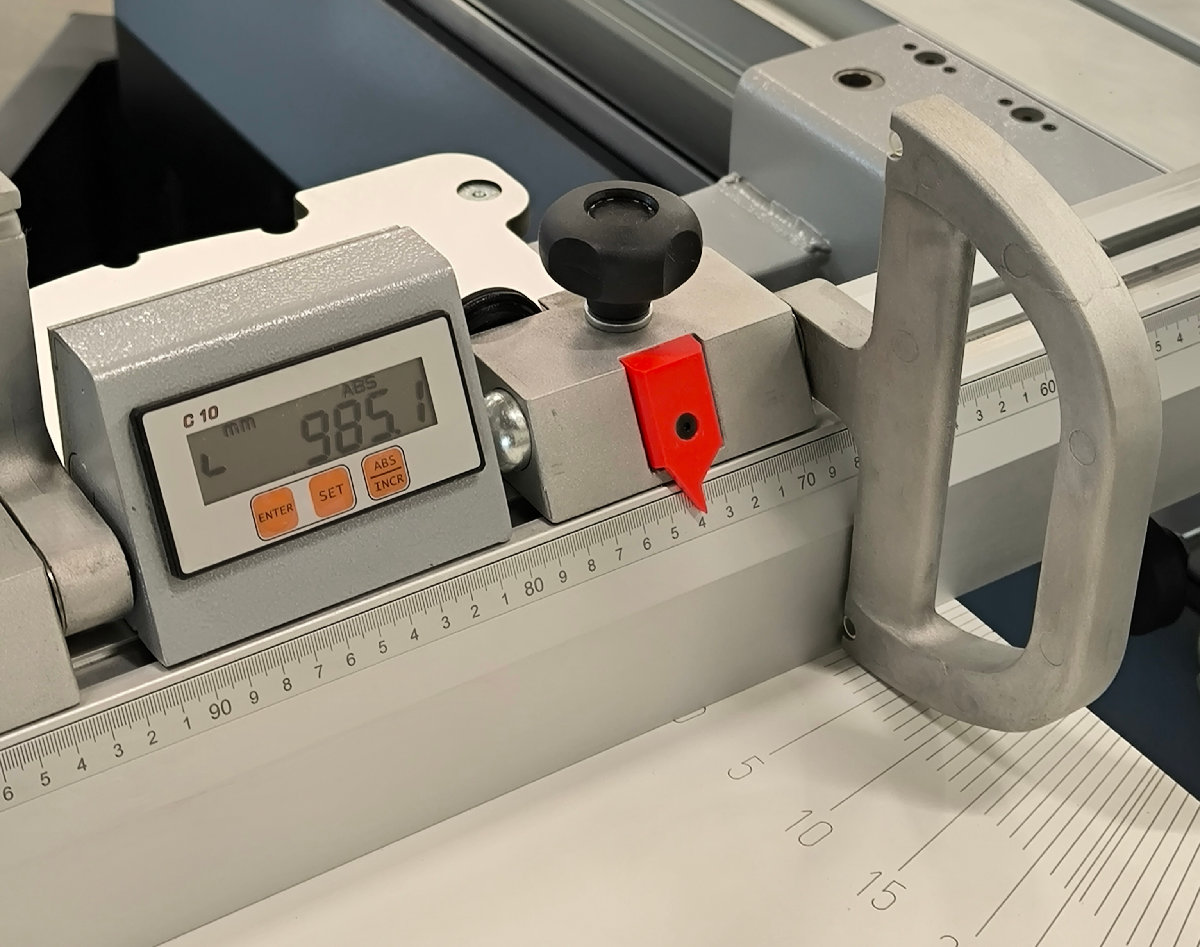

The extension table fence can be quickly set from +45° to –45° with fixed references at each angle and at 22°30’ because it is equipped with a rapid locking system and always keeps the stop settings constant in relation to the saw blade in any position, whether square or at an angle. This fence is extremely useful when frequent cuts are required at different angles.
SAWING UNIT WITH LONG SHAFT

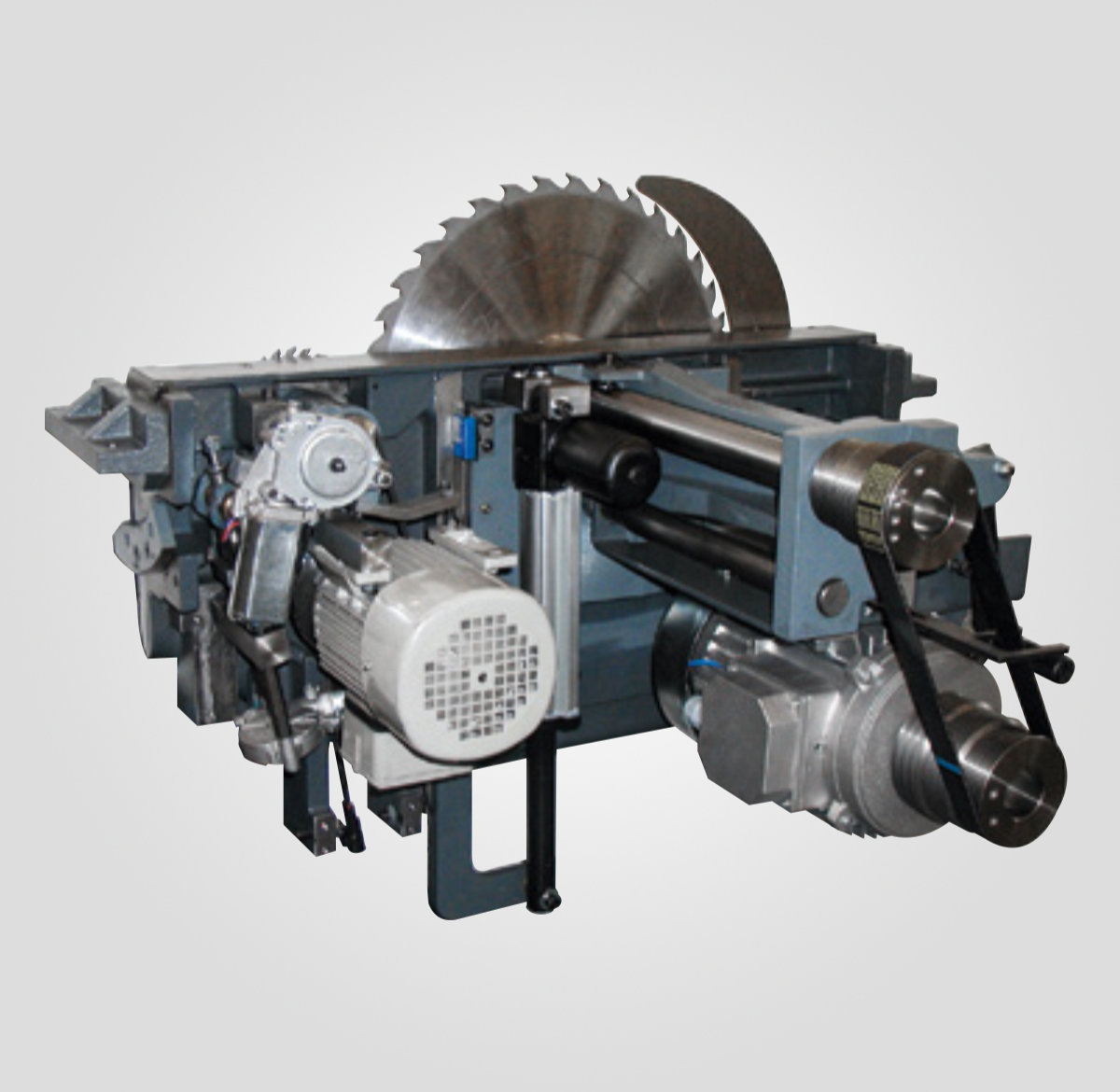

The sawing unit with a long shaft slides vertically along prismatic guides. Stability and lack of vibration are ensured by the considerable distance between the bearings of the long shaft. Power is transmitted through a new PolyV-belt.
EXCELLENT CUTTING FINISH AND QUALITY
The carriage sliding system, with large diameter bearings that roll along hardened and ground prismatic tracks, together with mechanical machining operations carried out on numerically controlled machines, mean stability, no vibration, excellent sliding and straight cutting. The tracks are fixed to the carriage and to the sub-carriage by mechanical pressure, avoiding any risk of glue losing its adhesion through age.
TECHNICAL DATA
| TECHNICAL DATA | P3200NX | P3200SX | P3200AX | |
|---|---|---|---|---|
| SAW | ||||
| FIXED TABLE DIMENSIONS / HEIGHT | mm | 1150 x 680 / 870 | 1150 x 680 / 870 | 1150 x 680 / 870 |
| CARRIAGE DIMENSIONS / STROKE | mm | 3200 x 400 / 3500 | 3200 x 400 / 3500 | 3200 x 400 x 3500 |
| CUTTING WIDTH | mm | 1300 | 1300 | 1300 |
| MAX DIAM. SAW BLADE / HOLE | mm | 500 / 30 | 500 / 30 | 500 / 30 |
| CUTTING HEIGHT AT 90°-45° | mm | 177 - 133 | 157 - 111 | 157 - 111 |
| TILTING BLADES | ° | 0° - 45° | 0° - 45° | 0° - 45° |
| SPINDLE SPEED SAW Ø 30 mm | g/min | 3000/3600/4200 | 3000/3600/4200 | 3000/3600/4200 |
| MOTOR POWER | KW | 7,5 | 7,5 | 7,5 |
| UPPER AND LOWER DUST EXTRACTION HOOD Ø | mm | 120 / 100 | 120 / 100 | 120 / 100 |
| STANDARD SCORING SAW WITH ELECTRIC HORIZONTAL ADJUSTMENT (POST FORMING OPTIONAL) | ||||
| Ø BLADE - Ø HOLE, STANDARD SCORING SAW | >mm | >125 - 20 | >125 - 20 | 125 - 20 |
| Ø BLADE - Ø HOLE, POST FORMING SCORING SAW (optional) | mm | 230 - 20 | 230 - 20 | 230 - 20 |
| SCORING//POST FORMING UNIT CUTTING HEIGHT | mm | 8 / 50 | 8 / 50 | 8 / 50 |
| SHAFT SPEED STANDARD SCORER/POST FORMING SCORER | >g/min | 7600 / 4400 | 7600 / 4400 | 7600 / 4400 |
| MOTOR POWER STANDARD SCORER/POST FORMING SCORER | >kW | 0,55 / 0,75 | 0,55 / 0,75 | 0,55 / 0,75 |
| SOUND EMISSION ACCORDING TO ISO 7960 STANDARD-CUTTING WITH SAW | >La eq [dB(A)] | 81,2 - 83,9 | 81,2 - 83,9 | 81,2 - 83,9 |
| DUST EMISSION ACCORDING TO DIN 33893 STANDARD-CUTTING WITH SAW | mg/m3 | 0,87 | 0,87 | 0,87 |
| NET WEIGHT | Kg | 1050 | 1080 | 1250 |
A RICHIESTA:
Legenda
- O = ON REQUEST
- X = STANDARD
- \ = NOT AVAILABLE
| O=ON REQUEST|X=STANDARD|\=NOT AVAILABLE | |||
| NX | SX | AX | |
| Device for parallel cuts | O | O | O |
| Motor driven carriage with variable speed | \ | \ | O |
| Carriage 3800 mm long | O | O | O |
| Post-forming scoring unit | O | O | O |
| Extension table mm 400 | O | O | O |
| Extra extension table | O | O | O |
| Stops on fence indicated by magnetic band | O | O | X |
| Saw blade motor with inverter | \ | O | O |
| Pressure pad 3000 or 3600 mm long | O | O | O |
| Controls on carriage - automatic starting | O | O | O |
| Aligning laser device | O | O | O |
| Cutting width on parallel fence mm 1100 or 1500 | O | O | O |
| Cutting optimizer | \ | \ | O |
| Automatic labelling machine on machine edge | \ | \ | O |
| Saw fence controlled by programmer on control panel or mobile control panel | \ | O | X |
| Three-axis programmer on control panel or mobile control panel | \ | O | X |
| Scorer pneumatic exclusion | O | O | O |
| Scoring off-set display | O | O | X |
| 4-axis programmer on control console or on pendent | \ | O | O |

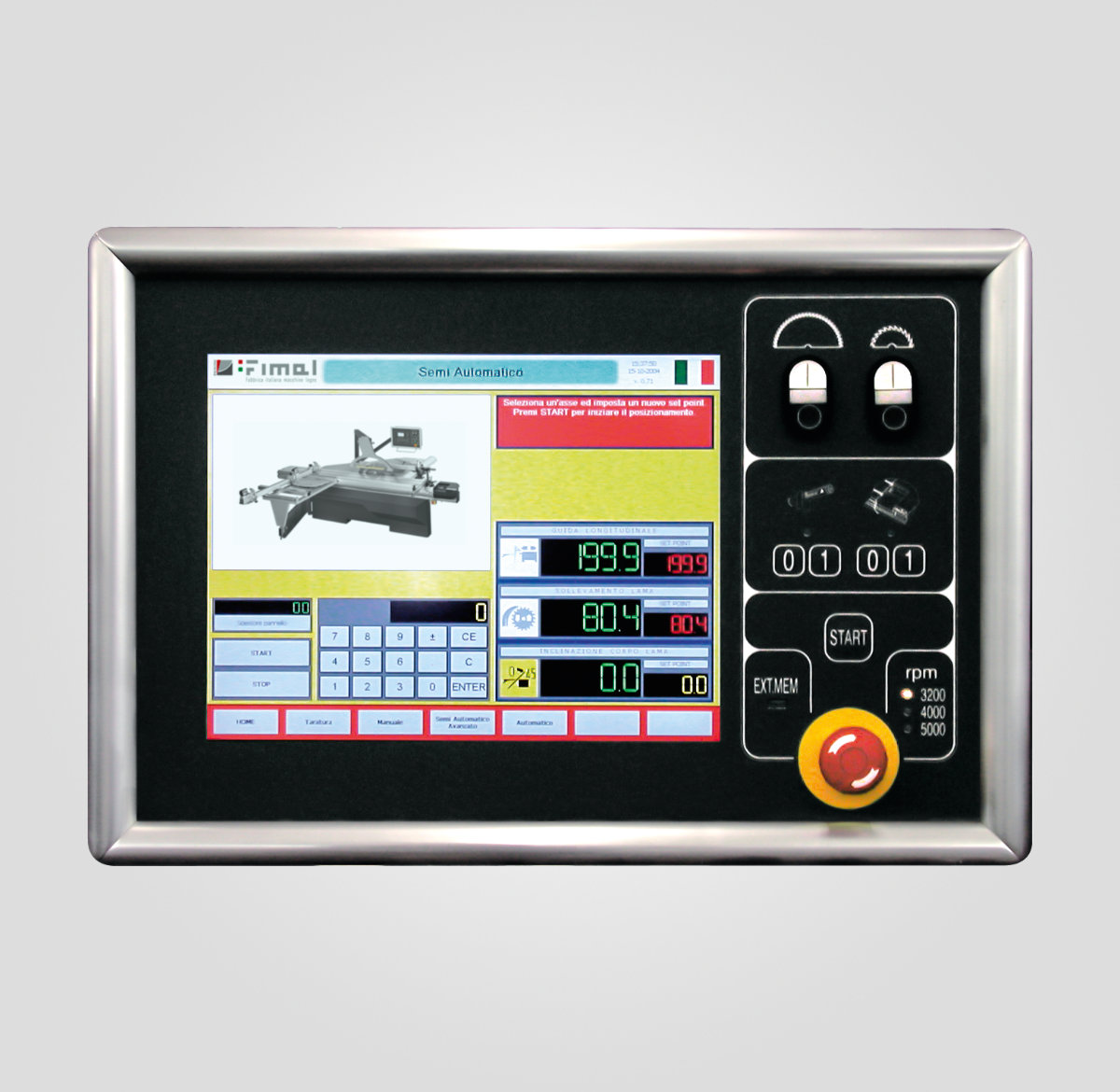

| Programmer with 15" colour touch screen monitor | \ | \ | O |
